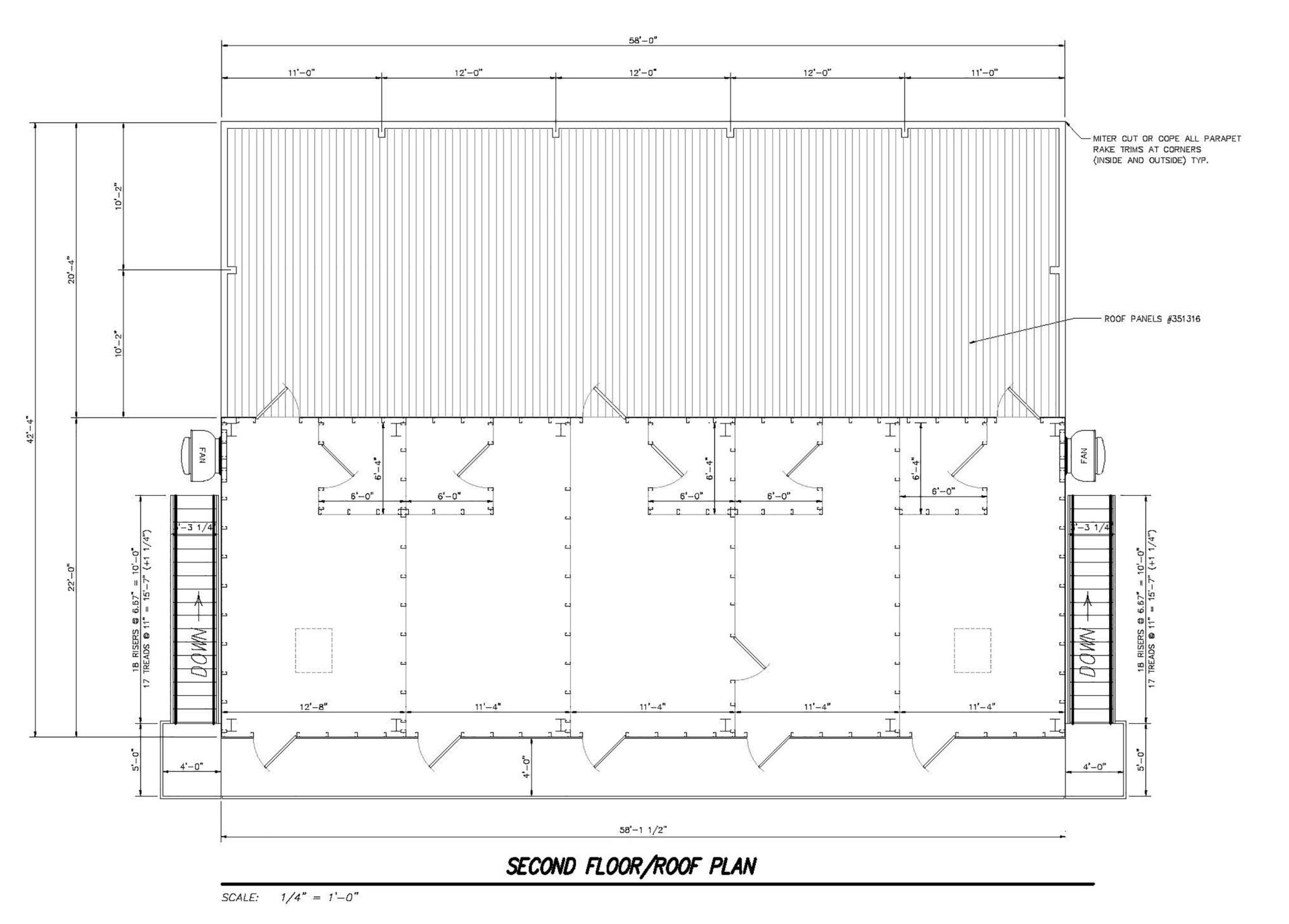

Series 2000
Motel / Mall
Features
Dimensions:
58'L x 42'-4"W x 27'H Ridge
Roof Live Load:
100 PSF
Wind Load:
25 PSF

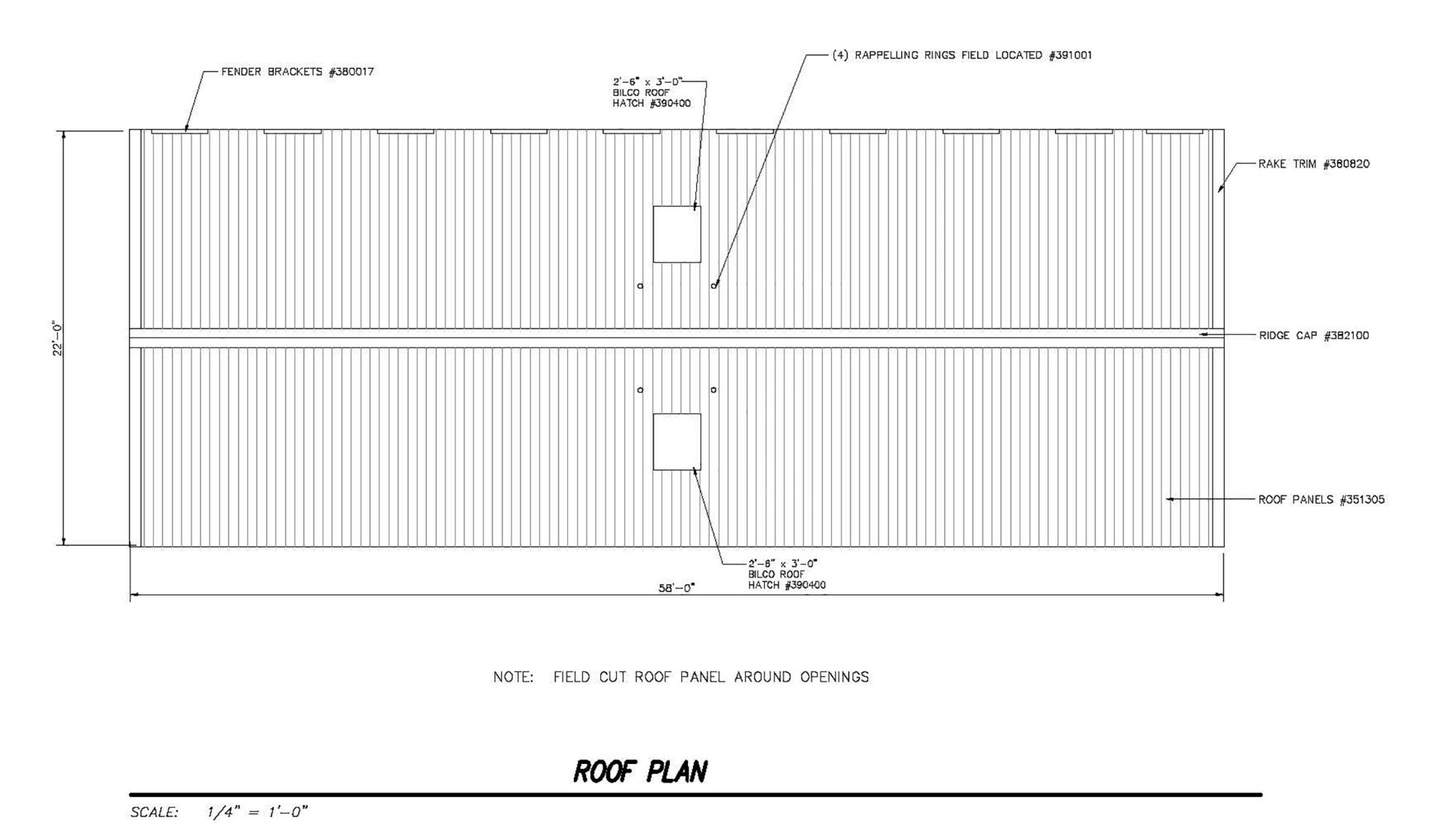

Roof:
Gable (Motel), Flat (Mall)
Floor Live Load:
100 PSF
Exterior Second Floor Balcony:
100 PSF
Accessories
- Parapet Roof Guard with Chained Opening (Mall)
- (2) Exterior Stairs to 2nd Floor
- (15) 3’ x 7’ Exterior Steel Doors
- (3) 6’ x 7’ Exterior Steel Doors
- (21) 3’ x 7’ Interior Steel Doors
- (2) 2’-6” x 3’-0” Roof Hatches to Attic
- (2) 2’-6” x 3’-0” Roof Hatches to Motel Roof
- (2) Exhaust Fans
- (4) Rappelling Rings
Trim Colors
Wall Colors
Accessories
Exterior Stairs (fire escape)
Product Description
Manufactured from formed stringers welded to bar grate treads with open risers. The railing system is constructed from welded tube steel. Hand rails manufactured from 1.25”I.D. (1.66” O.D.) schedule 40 round pipe and hot-dipped galvanized. Includes swing doors at each upper floor. The exterior stairs or fire escape can be ordered to fit any level.
Application For Use
Provides a second means of egress off a floor, aids in simultaneous scenarios, and gives the opportunity to enact in advancement down stairs.
Inset Balcony
Product Description
Recessed inset/corner balcony on nearly any floor(s) with hot-dipped galvanized round pipe perimeter railings and access door to interior.
Application For Use
Provides a recessed balcony for rappelling exercises. Gives similar training experiences encountered in motel balconies and condominiums.
Cantilevered Balcony
Constructed of prime painted structural tube and hot-dipped galvanized bar grate deck and joists. Can be ordered in a variety of lengths and at nearly any deck level.
Vertical Rescue Prop, Removable
Product Description
This removable prop consists of four movable wall panels and a Milcor floor door. The panels are configured to form a vertical shaft. At the top of the shaft is a 3′ x 3′ Milcor floor door that provides access into the prop from the floor above. The floor door is equipped with counter balancing springs and is prime painted. Each of the four 3’7”W x full ceiling height wall panels are constructed of 20-gauge galvalume vertical and horizontal channel stiffeners which attach to a 14-gauge galvalume hanging track. The whole system is then held in place with two compression clamps.
Application For Use
The functionality of the movable panels allow the prop to be assembled for confined space training and removed when training is needed in the entire room. The prop can be installed on any level of a two-story or taller training tower as well as on multiple levels for the ultimate in confined space training.
Confined Space Rescue Prop
Product Description
The 36” diameter corrugated galvanized pipe extends from the first floor to the second floor. It features a 90 degree elbow for the ultimate in confined space training. The 3′ x 3′ Bilco floor door at the top provides access into the prop and to the first floor.
Application For Use
An excellent way to simulate restricted environments including collapsed structures, teach trainees how to negotiate small openings, and test physiological capabilities.
Roll-up Door
Product Description
A continuously corrugated galvanized steel curtain with a siliconized polyester finish. The door slides on guides to a top drum through the means of a torsion spring.
Application For Use
Aids in the simulation of commercial training exercises through a larger access door.
Operating Lever Latch
Product Description
Heavy-duty latch opens shutters and doors from either side. Latch case is constructed of 1/8” thick zinc plated steel with a black powder coated finish.
Application For Use
Interior and exterior handles may be padlocked to secure tower when not in use. The latch’s hasp secures lever in place.
Pry Entry Door
Product Description
The Pry Door utilizes expendable breaching pins along with wood inserts. This door is an outward opening door designed to offer realistic and affordable pry breach training. The Pry Door can simulate up to a 3-lock set utilizing the built-in locking system and patented BTI breaching pins. In addition to breaching pins, the pry door utilizes a low-cost wood insert to accept the use of a Halligan tool or similar prying tool.
Application For Use
Provides training for breaching a locked door.
Floor Door
Product Description
Flush-mounted, single-leaf door is all-steel constructed with tread plate covers, stainless steel hinges, and torsion springs. Door includes a snap latch with a removable handle. Various sizes available.
Application For Use
Provides confined space access to the floor below and supports full floor loads.
Ship's Ladder
Product Description
Heavy-gauge steel stringers welded to bar grate treads. Includes a tubular railing on both sides. Hot-dip galvanized steel.
Application For Use
Offers more convenient access to roofs or other remote areas.
Interior Ladder
Product Description
Constructed of tubular rails and bar steps. Includes railing system with a chain gate on the upper floor. All surfaces are hot-dipped galvanized steel. Allows access to attic or roof areas and offers training in a confined area.
Caged Ladder
Product Description
Constructed of tubular rails and bar steps. Cage is made of flat steel strapping and the entire unit is hot-dipped galvanized steel. Caged ladder can be installed from the ground level to the roof. Photo at left includes a supported balcony.
Ladder Hook Bar
Product Description
The Ladder Hook Bar consists of 10′ 6″ long Schedule 80 pipe with 12-gauge galvanized pipe angles for attachment.
Application For Use
The bar is used on sloped roofs to ensure a safe attachment of the trainee’s ladder hook when resting the ladder against the roof.
Rappelling Anchor, Swivel
Product Description
Can be added to any floor or roof deck or mounted overhead. Rated for an ultimate load of 10,000 lbs and working load of 1,000 lbs (exceeds OSHA load requirement 29 CFR 1926.502(d)(15) and meets NFPA 1402 standard 11.2.1). The anchor housing is constructed of aircraft quality galvanized alloy and capable of a 360-degree swivel and 180-degree pivot. To ensure the safety of trainees, each anchor is 200% proof-load tested.
Application For Use
Rappelling exercises can be used to simulate high-angle rescue, helicopter deployment, or raising a victim or equipment.
Rappel Railing
Product Description
The 42” high, prime-painted rappel railing system consists of three 3″ diameter, Schedule 80 pipes which are installed horizontally 14″ on center.
Application For Use
The system allows the rope to run from the rappelling ring tie off on the deck, over the railing to the trainee. Used to aid trainees in rappelling exercises by raising the rope off the roof deck to help with the initial descent.
Roof Hatch (2'6" x 4'6")
Product Description
Bilco roof hatches are hot-dipped galvanized and then prime painted. They are equipped with counterbalancing springs.
Application For Use
Appropriate size for a ship’s ladder.
Roof Hatch (3' x 2'6")
Product Description
Bilco roof hatches are hot-dipped galvanized and then prime painted. They are equipped with counterbalancing springs and shock absorbers.
Application For Use
Appropriate size for a roof ladder.
Slip-Resistant Roof Tape
Product Description
4” wide slip-resistant tape can be applied to 18-gauge galvanized roof panels for added safety. The tape, with pressure-sensitive adhesive, features a mineral coated surface for light to heavy foot traffic. The acceptable manufacturer of this tape is 3M. Note: Tape should only be applied to the flat portion of the roof panels.
Application For Use
Recommended for smaller areas only, the tape provides a slip-resistant surface to practice safe training during roofing exercises.
Durabak™ Slip-Resistant Paint Roof System
Product Description
18-gauge galvanized roof panels are covered with a three-coat paint system providing a safe, long-lasting roof system. The basecoat is an etch primer while the two topcoats are polyurethane paint with embedded rubber aggregate.
Application For Use
Provides an abrasion, chemical, saltwater, UV, corrosion, and slip-resistant surface to practice safe training during roofing exercises. In addition, the system is waterproof to ensure tower protection at all times.
Note: Paint does not cover recesses in panels, only the flat portion of the panels.
Durabak is a trademark of The Durabak Company.
Smoke Generator
Smoke Generator Product Description
This smoke generator operates on a 100% duty cycle with a smoke output of 7,680 cfm. The generator uses an oil based fluid with a maximum particle size of .7 microns to ensure long hang time and dense smoke (maximum visibility of 3 ft. in a 29’ x 29’ x 9’ high area after one minute of use). An automatic purging system prevents the heat exchanger from premature failure and clogs. The generator includes 4 gallons of safe, nontoxic, and oil based fluid. Oil based fluids are recommended for fire training environments, over water based fluids, as oil based fluids have 20 to 25 times longer hang time and will not dissipate rapidly in high temperature environments. The smoke generator has a 5 year warranty.
Application For Use
Used with Smoke Distribution System. Produces a dense, white smoke.
Smoke Distribution System
Product Description
Consists of a piping system controlled by gate valves that will service up to 6 rooms, a circulation fan, 3″ diameter schedule 40 PVC pipes and cabinet. Requires a smoke generator (sold separately).
Application For Use
Directs the output of a smoke generator (not included) to any of the serviced floors.
Exhaust Fan
Product Description
Available as: 208-volt, 3-phase, 2-speed or 240-volt, single-phase, single-speed units. Both models feature a 1½ horsepower electric motor and a belt-driven, centrifugal wall-mounted fan. The maximum output of both units is 8,000 cubic feet per minute.
Application For Use
Circulates smoke and evacuates towers quickly.
Movable Wall System/Maze with Door
Product Description
Constructed of the same durable materials as our Movable Wall System/Maze, this system features a 2’6” W x 6’10” H door. The 20-gauge galvanized steel door allows entry into the partitioned area for enhanced training. The included lockset allows instructors to secure the area before and after training.
Movable Wall System/Maze
Product Description
All-steel panels can be easily slid/moved and removed to create a variety of room configurations for an enhanced training experience.
Mortarless Brick Facade
Product Description
Mortarless brick siding can be attached to the outside of any Tactical Training Systems training tower. Novabrik® is the approved manufacturer of the mortarless brick facade.

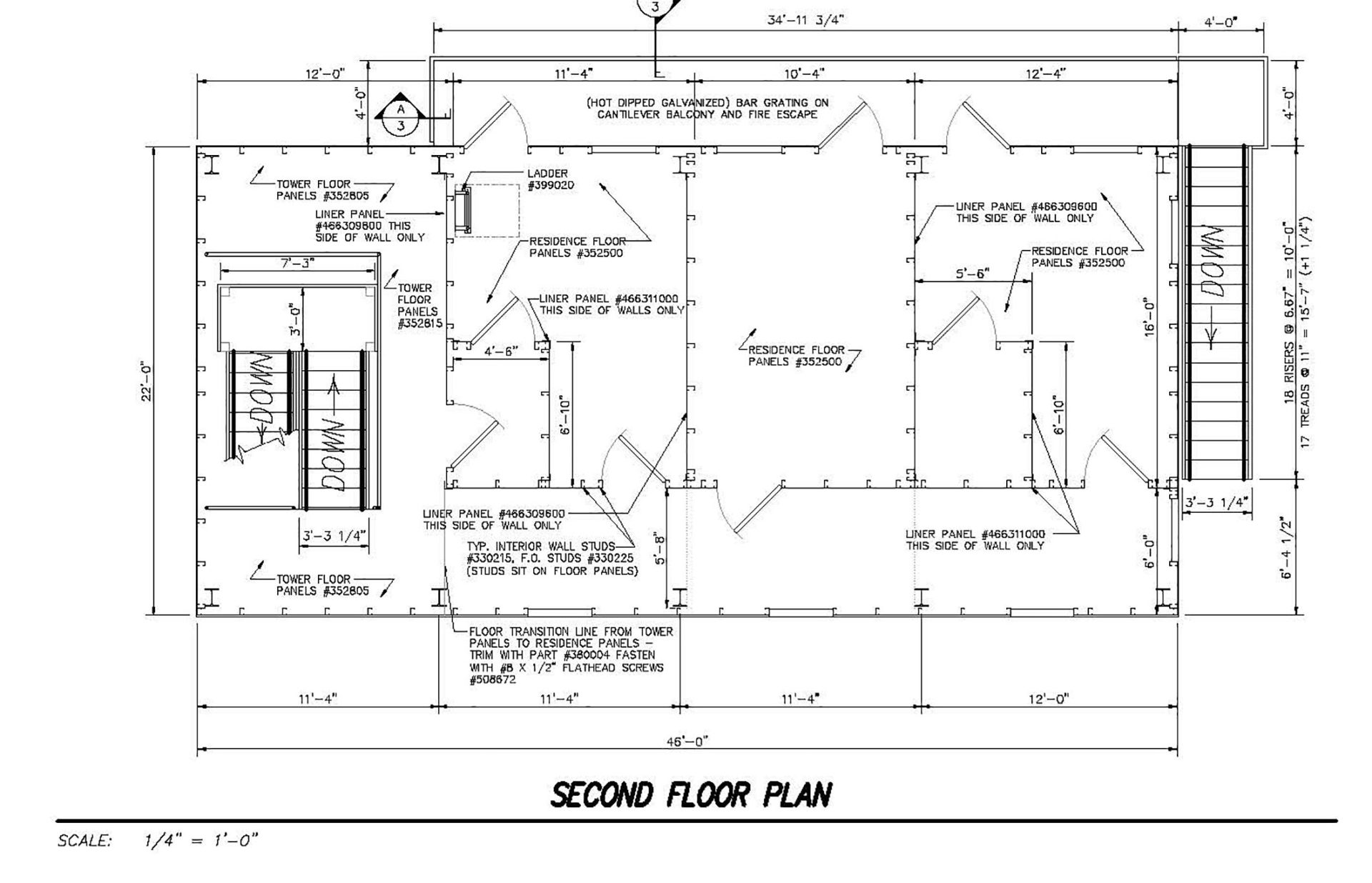

Series 2000
Residence
Features
Dimensions:
58'L x 42'-4"W x 27'H
Roof Live Load:
100 PSF
Roof:
Flat
Floor Live Load:
100 PSF
Accessories
- Exterior Second Floor Balcony 39'L x 4'W
- Parapet Roof Guard with Chained Opening
- Interior "U" Shaped Stair to 2nd Floor
- Exterior Stair to 2nd Floor
- Interior Fixed Ladder, 2nd Floor to Roof
- (4) First Floor Rooms
- (5) Second Floor Rooms
- (8) 3' x 7' Exterior Steel Doors
- (1) 6' x 7' Exterior Steel Door
- (13) 3' x 7' Interior Steel Doors
- (14) 3' x 4' Window Openings with Steel Shutters
- (1) 2'-6" x 3'-0" Roof Hatch
Trim Colors
Wall Colors
Accessories
Helicopter Skid Simulator
Product Description
6’ x 5’ 11″ 18-gauge roof deck simulates a helicopter floor. Constructed of prime painted structural tube and pipe to form skids, hot-dipped galvanized joists, and positioned on the tower roof. Simulator is totally cantilevered. Perimeter railing is 1.25” I.D. (1.66” O.D.) schedule 40 hot-dipped galvanized round pipe with chained gates on both sides.
Application For Use
Provides realistic airborne insertion exercises without the expense of flight time and added danger of prop-wash.
Exterior Stairs (fire escape)
Product Description
Manufactured from formed stringers welded to bar grate treads with open risers. The railing system is constructed from welded tube steel. Hand rails manufactured from 1.25”I.D. (1.66” O.D.) schedule 40 round pipe and hot-dipped galvanized. Includes swing doors at each upper floor. The exterior stairs or fire escape can be ordered to fit any level.
Application For Use
Provides a second means of egress off a floor, aids in simultaneous scenarios, and gives the opportunity to enact in advancement down stairs.
Supported Balcony
Product Description
Supported balcony to second deck level. Deck size is 3’6’’ wide x 6’ long and includes a swing door at the balcony level. Constructed of tubular columns and 1.25” I.D. (1.66’ O.D.) schedule 40 round pipe railings. Hot dipped galvanized.
Inset Balcony
Product Description
Recessed inset/corner balcony on nearly any floor(s) with hot-dipped galvanized round pipe perimeter railings and access door to interior.
Application For Use
Provides a recessed balcony for rappelling exercises. Gives similar training experiences encountered in motel balconies and condominiums.
Open Corner Balcony
Product Description
Provides the ability to perform rescue scenarios appropriate for motel and condominium fires.
Application For Use
Can be added to any tower model that offers enough floor space to accommodate this option.
Cantilevered Balcony
Constructed of prime painted structural tube and hot-dipped galvanized bar grate deck and joists. Can be ordered in a variety of lengths and at nearly any deck level.
Vertical Rescue Prop, Removable
Product Description
This removable prop consists of four movable wall panels and a Milcor floor door. The panels are configured to form a vertical shaft. At the top of the shaft is a 3′ x 3′ Milcor floor door that provides access into the prop from the floor above. The floor door is equipped with counter balancing springs and is prime painted. Each of the four 3’7”W x full ceiling height wall panels are constructed of 20-gauge galvalume vertical and horizontal channel stiffeners which attach to a 14-gauge galvalume hanging track. The whole system is then held in place with two compression clamps.
Application For Use
The functionality of the movable panels allow the prop to be assembled for confined space training and removed when training is needed in the entire room. The prop can be installed on any level of a two-story or taller training tower as well as on multiple levels for the ultimate in confined space training.
Confined Space Rescue Prop
Product Description
The 36” diameter corrugated galvanized pipe extends from the first floor to the second floor. It features a 90 degree elbow for the ultimate in confined space training. The 3′ x 3′ Bilco floor door at the top provides access into the prop and to the first floor.
Application For Use
An excellent way to simulate restricted environments including collapsed structures, teach trainees how to negotiate small openings, and test physiological capabilities.
Roll-up Door
Product Description
A continuously corrugated galvanized steel curtain with a siliconized polyester finish. The door slides on guides to a top drum through the means of a torsion spring.
Application For Use
Aids in the simulation of commercial training exercises through a larger access door.
Operating Lever Latch
Product Description
Heavy-duty latch opens shutters and doors from either side. Latch case is constructed of 1/8” thick zinc plated steel with a black powder coated finish.
Application For Use
Interior and exterior handles may be padlocked to secure tower when not in use. The latch’s hasp secures lever in place.
Pry Entry Door
Product Description
The Pry Door utilizes expendable breaching pins along with wood inserts. This door is an outward opening door designed to offer realistic and affordable pry breach training. The Pry Door can simulate up to a 3-lock set utilizing the built-in locking system and patented BTI breaching pins. In addition to breaching pins, the pry door utilizes a low-cost wood insert to accept the use of a Halligan tool or similar prying tool.
Application For Use
Provides training for breaching a locked door.
Floor Door
Product Description
Flush-mounted, single-leaf door is all-steel constructed with tread plate covers, stainless steel hinges, and torsion springs. Door includes a snap latch with a removable handle. Various sizes available.
Application For Use
Provides confined space access to the floor below and supports full floor loads.
Ship's Ladder
Product Description
Heavy-gauge steel stringers welded to bar grate treads. Includes a tubular railing on both sides. Hot-dip galvanized steel.
Application For Use
Offers more convenient access to roofs or other remote areas.
Interior Ladder
Product Description
Constructed of tubular rails and bar steps. Includes railing system with a chain gate on the upper floor. All surfaces are hot-dipped galvanized steel. Allows access to attic or roof areas and offers training in a confined area.
Caged Ladder
Product Description
Constructed of tubular rails and bar steps. Cage is made of flat steel strapping and the entire unit is hot-dipped galvanized steel. Caged ladder can be installed from the ground level to the roof. Photo at left includes a supported balcony.
Ladder Hook Bar
Product Description
The Ladder Hook Bar consists of 10′ 6″ long Schedule 80 pipe with 12-gauge galvanized pipe angles for attachment.
Application For Use
The bar is used on sloped roofs to ensure a safe attachment of the trainee’s ladder hook when resting the ladder against the roof.
Rappelling Platform
Product Description
Constructed of galvanized joist sections and prime painted structural tube, bar grate, and optional welded steel tube rails. Features a 100 PSF deck live load and can be ordered in a variety of lengths and at nearly any deck level.
Application For Use
Provides a cantilevered platform for freefall-style rappelling.
Rappelling Anchor, Swivel
Product Description
Can be added to any floor or roof deck or mounted overhead. Rated for an ultimate load of 10,000 lbs and working load of 1,000 lbs (exceeds OSHA load requirement 29 CFR 1926.502(d)(15) and meets NFPA 1402 standard 11.2.1). The anchor housing is constructed of aircraft quality galvanized alloy and capable of a 360-degree swivel and 180-degree pivot. To ensure the safety of trainees, each anchor is 200% proof-load tested.
Application For Use
Rappelling exercises can be used to simulate high-angle rescue, helicopter deployment, or raising a victim or equipment.
Rappel Railing
Product Description
The 42” high, prime-painted rappel railing system consists of three 3″ diameter, Schedule 80 pipes which are installed horizontally 14″ on center.
Application For Use
The system allows the rope to run from the rappelling ring tie off on the deck, over the railing to the trainee. Used to aid trainees in rappelling exercises by raising the rope off the roof deck to help with the initial descent.
Roof Hatch (2'6" x 4'6")
Product Description
Bilco roof hatches are hot-dipped galvanized and then prime painted. They are equipped with counterbalancing springs.
Application For Use
Appropriate size for a ship’s ladder.
Roof Hatch (3' x 2'6")
Product Description
Bilco roof hatches are hot-dipped galvanized and then prime painted. They are equipped with counterbalancing springs and shock absorbers.
Application For Use
Appropriate size for a roof ladder.
Elevator Shaft
Product Description
Offered in many heights and includes roll-up door access to the shaft at each floor. The roof of the tower can be equipped with a hatch for vertical work.
Application For Use
Offers real-life training in confined space while providing emergency access to the trainees along the vertical drop.
Slip-Resistant Roof Tape
Product Description
4” wide slip-resistant tape can be applied to 18-gauge galvanized roof panels for added safety. The tape, with pressure-sensitive adhesive, features a mineral coated surface for light to heavy foot traffic. The acceptable manufacturer of this tape is 3M. Note: Tape should only be applied to the flat portion of the roof panels.
Application For Use
Recommended for smaller areas only, the tape provides a slip-resistant surface to practice safe training during roofing exercises.
Durabak™ Slip-Resistant Paint Roof System
Product Description
18-gauge galvanized roof panels are covered with a three-coat paint system providing a safe, long-lasting roof system. The basecoat is an etch primer while the two topcoats are polyurethane paint with embedded rubber aggregate.
Application For Use
Provides an abrasion, chemical, saltwater, UV, corrosion, and slip-resistant surface to practice safe training during roofing exercises. In addition, the system is waterproof to ensure tower protection at all times.
Note: Paint does not cover recesses in panels, only the flat portion of the panels.
Durabak is a trademark of The Durabak Company.
Smoke Generator
Smoke Generator Product Description
This smoke generator operates on a 100% duty cycle with a smoke output of 7,680 cfm. The generator uses an oil based fluid with a maximum particle size of .7 microns to ensure long hang time and dense smoke (maximum visibility of 3 ft. in a 29’ x 29’ x 9’ high area after one minute of use). An automatic purging system prevents the heat exchanger from premature failure and clogs. The generator includes 4 gallons of safe, nontoxic, and oil based fluid. Oil based fluids are recommended for fire training environments, over water based fluids, as oil based fluids have 20 to 25 times longer hang time and will not dissipate rapidly in high temperature environments. The smoke generator has a 5 year warranty.
Application For Use
Used with Smoke Distribution System. Produces a dense, white smoke.
Smoke Distribution System
Product Description
Consists of a piping system controlled by gate valves that will service up to 6 rooms, a circulation fan, 3″ diameter schedule 40 PVC pipes and cabinet. Requires a smoke generator (sold separately).
Application For Use
Directs the output of a smoke generator (not included) to any of the serviced floors.
Exhaust Fan
Product Description
Available as: 208-volt, 3-phase, 2-speed or 240-volt, single-phase, single-speed units. Both models feature a 1½ horsepower electric motor and a belt-driven, centrifugal wall-mounted fan. The maximum output of both units is 8,000 cubic feet per minute.
Application For Use
Circulates smoke and evacuates towers quickly.
Multi-Level Platform
Product Description
Supported multi-level platform consists of prime painted structural steel, schedule 40 pipe railing, bar grate deck, and galvanized joists. Each level is approximately 11’-8” W x 21’-6” L and includes a swing door at each upper level.
Application For Use
The Multi-Level Platform is ideal for high angle rescue training and free fall training. In addition, the platform allows trainees to perform scenarios in a true-to-life open environment.
Movable Wall System/Maze with Door
Product Description
Constructed of the same durable materials as our Movable Wall System/Maze, this system features a 2’6” W x 6’10” H door. The 20-gauge galvanized steel door allows entry into the partitioned area for enhanced training. The included lockset allows instructors to secure the area before and after training.
Movable Wall System/Maze
Product Description
All-steel panels can be easily slid/moved and removed to create a variety of room configurations for an enhanced training experience.
Mortarless Brick Facade
Product Description
Mortarless brick siding can be attached to the outside of any Tactical Training Systems training tower. Novabrik® is the approved manufacturer of the mortarless brick facade.
